How to Make Activated Charcoal: A Complete Guide
Activated charcoal has numerous applications, from water filtration to air purification and even in skincare. If you're interested in making your own activated charcoal, here's a comprehensive guide to help you through the process.
I. Materials and Equipment Needed
· Hardwood or coconut shells: These are the main sources for making activated charcoal.
· Kiln or retort: To carbonize the raw material.
· Activation agent (such as steam or chemicals like zinc chloride).
· Grinding equipment: To pulverize the carbonized material.
· Filtering and drying equipment.
II. Carbonization Process
1. Prepare the raw material by drying it thoroughly. This reduces the moisture content and makes the carbonization process more efficient.
2. Place the dried hardwood or coconut shells in the kiln or retort. Heat the kiln to a high temperature (usually between 400 to 800 degrees Celsius).
3. Maintain the temperature for several hours until the material is completely carbonized. The carbonized material will be black and brittle.
III. Activation Process
1. There are two main methods of activation: physical activation and chemical activation.
· Physical activation: This involves exposing the carbonized material to steam at high temperatures (usually around 800 to 1000 degrees Celsius). The steam reacts with the carbon, creating pores and increasing the surface area of the charcoal.
· Chemical activation: In this method, the carbonized material is soaked in an activation agent like zinc chloride. After soaking, the material is heated to a high temperature, which causes the activation agent to react with the carbon and create pores.
2. After activation, the charcoal is washed thoroughly to remove any remaining activation agent.
IV. Grinding and Packaging
1. Use grinding equipment to pulverize the activated charcoal into a fine powder.
2. Filter the powder to remove any large particles or impurities.
3. Dry the powder completely to ensure its stability and effectiveness.
4. Package the activated charcoal in airtight containers to prevent moisture absorption and maintain its quality.

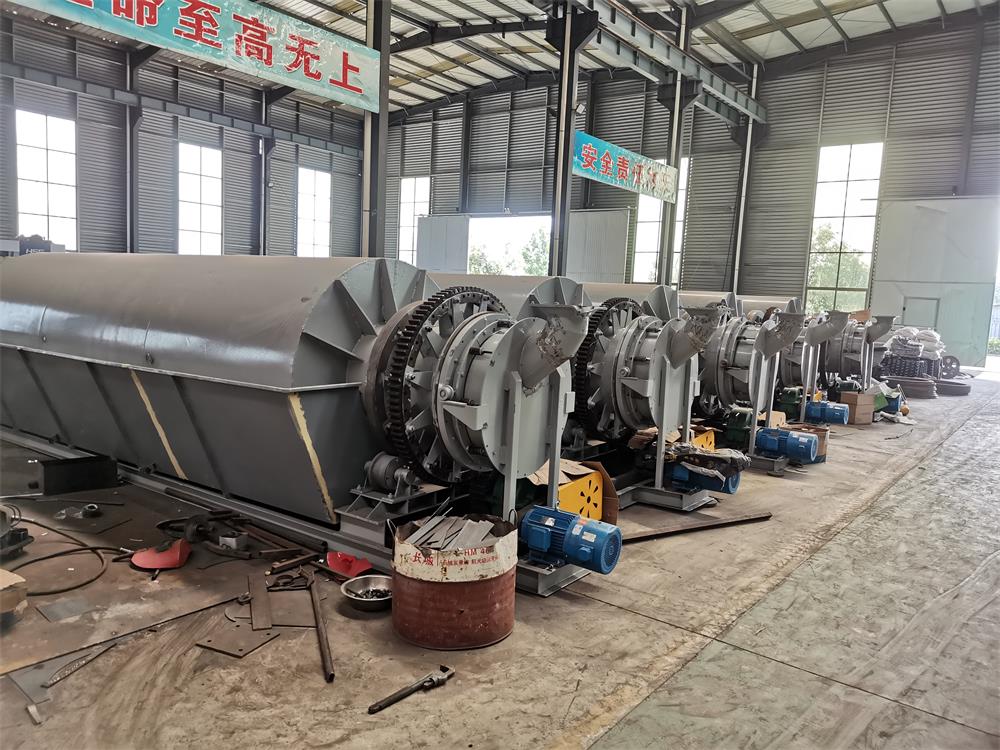

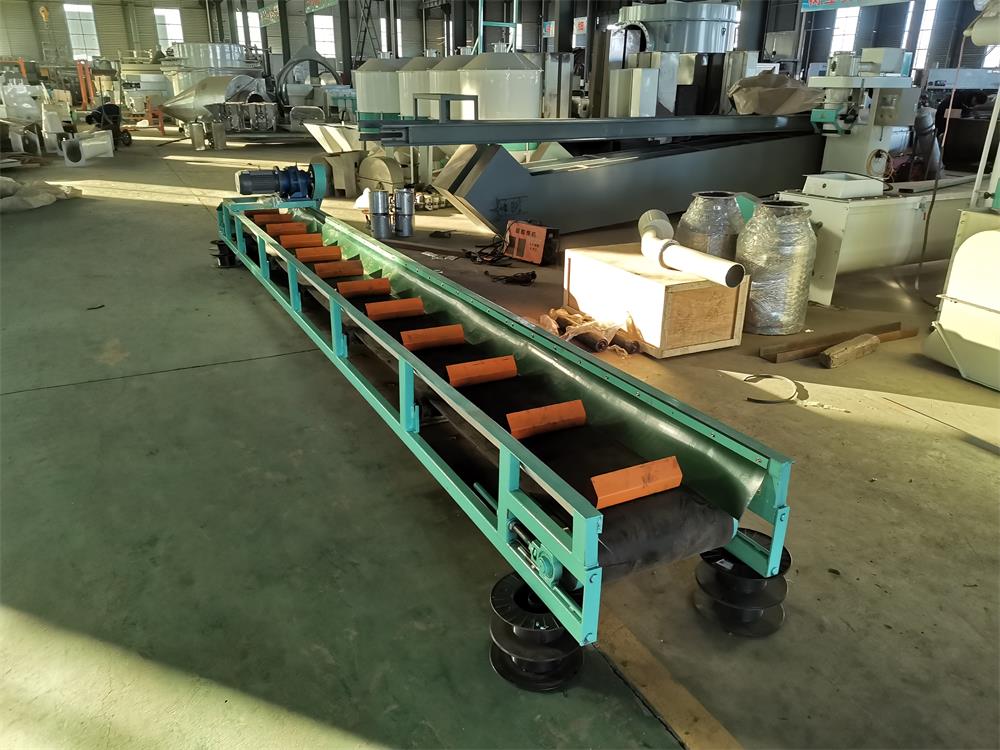

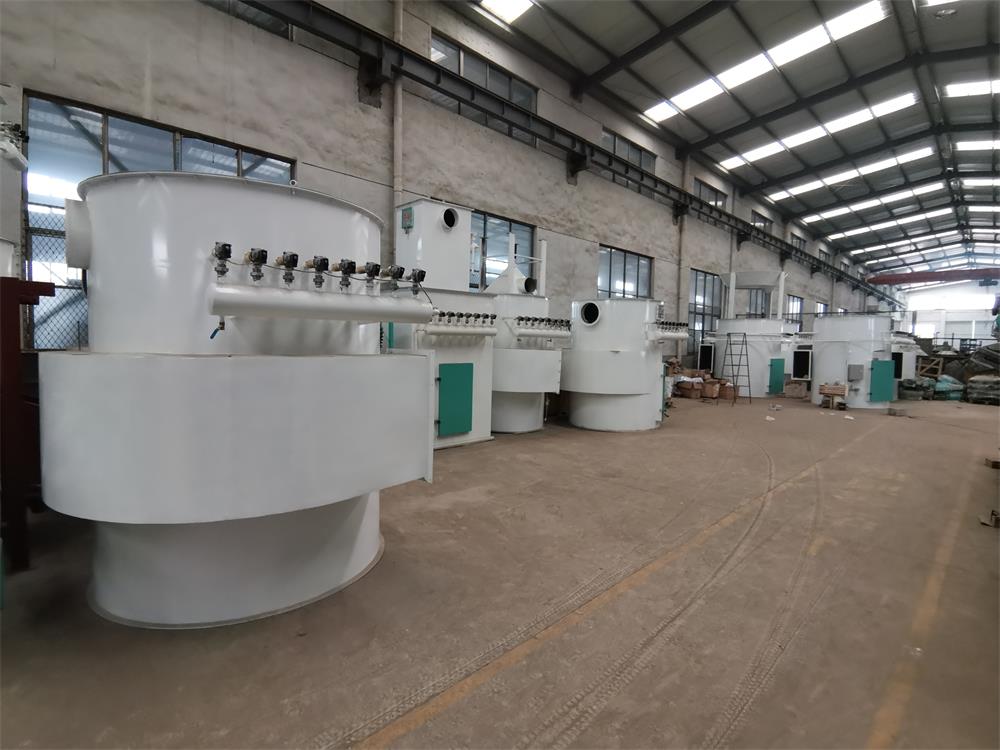

Shandong Hengyi Kaifeng Machinery Co., Ltd. can provide activated carbon production line, the main raw coal crushing equipment, grinding equipment, kneading and mixing equipmentType equipment, carbonization equipment, activation equipment, finished product processing equipment, etc
